Our company high-speed band sawing machine product introduction
Our company introduced German technology series production of high-speed band sawing machine, using different configurations, can be used for high-speed cutting of the following high-end materials:
1. High-speed cutting of non-ferrous metal materials, such as aluminum plate, aluminum casting gate, engine housing, honeycomb aluminum, foamed aluminum, aluminum ingots, industrial aluminum profiles, aluminum bars and aluminum pipes;
2. High speed cutting of wear-resistant materials, such as graphite, cathode carbon block, carbon fiber, wear-resistant ceramics, brake pads, foamed cement, etc.
3. High-speed cutting of crystal materials, such as glass, quartz, monocrystalline silicon, polysilicon, precious stones, semiconductor materials, etc.
High speed band sawing machine has high cutting efficiency, smooth surface, good precision and high safety, which has been applied in many domestic manufacturers, and has played a role in replacing imports, improving efficiency, saving energy and reducing consumption, and has created benefits for users.
User requirements
1. Cut foamed aluminum blank 1000*800*400 mm;
2. Cut into a variety of strip sizes, length 300~820 mm * Width 55~240 mm * thickness 40~95 mm

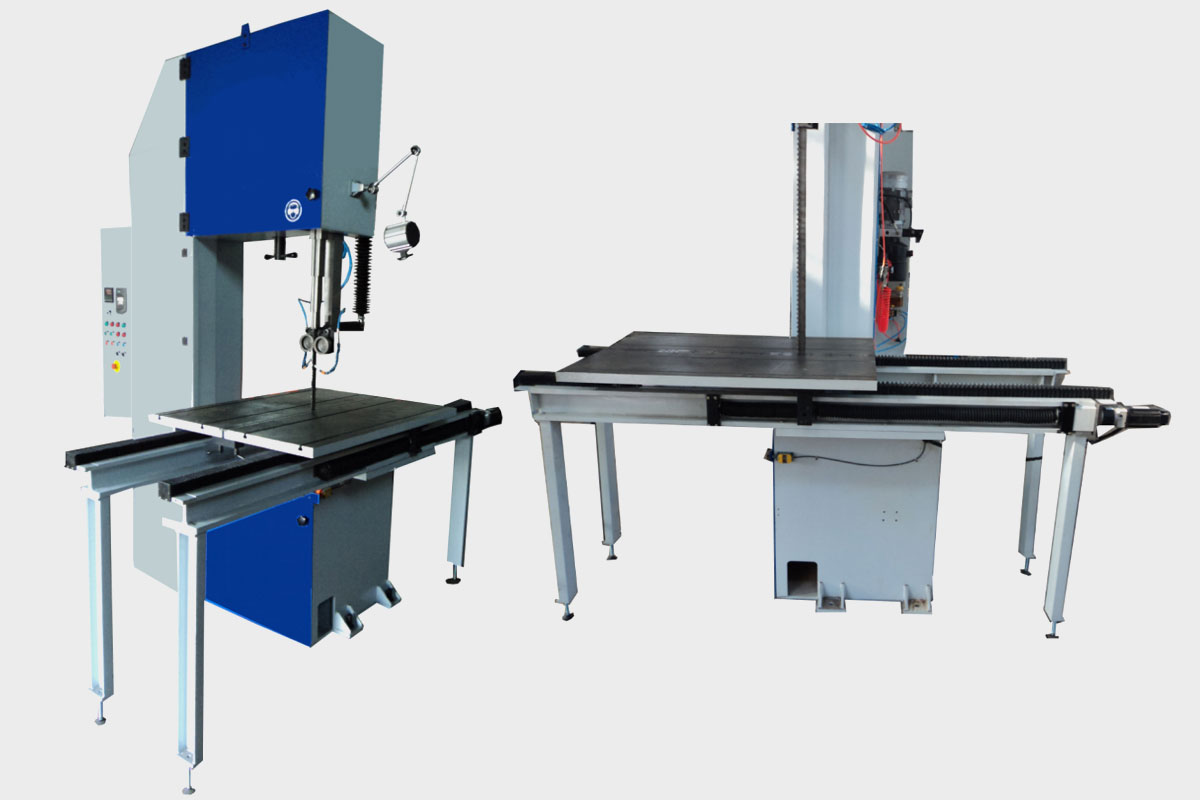

GG630H-100 high-speed vertical band sawing machine reference photos
GG630H-100 high-speed vertical band sawing machine composition and characteristics
1. Stable group welding saw frame, finishing after aging, enhance the stability of high-speed operation;
2. The band line speed can be adjusted by frequency conversion, the adjustment range is large, suitable for high-speed sawing of different aluminum and aluminum alloy materials, and the lower wheel is stopped and braking to ensure safety;
3. Saw belt manual tension, digital display tension pressure, broken belt stop protection;
The user can choose hydraulic independent tension unit to realize hydraulic tension of the saw belt.
4. Roller type precision saw belt guide device;
5. The upper guide arm can be adjusted up and down according to the cutting height, manual mechanical. Users can choose electric lifting type.
6. Aluminum alloy pulley, surface vulcanized hard rubber, reduce noise, high-speed operation more stable;
7. Open door power off design to ensure safety;
8. Servo motor feed table, speed stepless adjustment;
9. Table with ruler, easy to position and adjust the cutting width;
10. Compressed air purging device with pressure regulator and electromagnetic switch; Compressed air is provided by the user.
11. Saw belt alcohol and water spray lubrication device. Compressed air is provided by the user.
The user can choose the imported spray lubrication device, the use of imported plant lubricating oil, less consumption, degradable, for non-ferrous metal and its alloy sawing use, greatly extend the service life of the saw band and improve the sawing surface finish.
GG630H-100 high-speed vertical band sawing machine main technical parameters
1. Wheel diameter: 630 mm
2. Saw belt speed: 500~2000 m/min variable frequency adjustable
3. Throat depth: 600 mm
4. Throat height: 800mm (increased)
5. Belt saw motor: 11 kW
6. Table servo motor: 1 kW
7. Saw belt specification: 34* 1.1mm (length according to actual design)
8. Feed table size: front and back 1150 mm, left and right 990 mm (saw belt left and right split)
9. Feed table stroke: 1000 mm
10. Weight: About 2200 kg
GG630H-100 high-speed vertical band sawing machine manufacturing cycle
Advance payment up to 60 days
