Main technical parameters
| Machine tool model | GZK4235 |
| Sawing ability (mm) | Round timber: Φ 350 Square timber: □ 350 × 350 |
| Sawband specifications (length x width x thickness) mm | 4380×34×1.1 |
| Sawing speed (m/min) | Five types: 22, 32, 43, 55, and 65 |
| Main motor power (kw) | 2.2 kw 6 |
| Hydraulic pump power (kw) | 0.75 |
| Cooling pump power (kw) | 0.04 |
| Feed length | 0-9999.9mm |
| Number of feeding units | 0-999 pieces |
| Number of groups | 1-8 groups |
| Saw belt wheel diameter | Φ500mm |
| Workbench height | 710mm |
| Electric motor: saw belt main drive | 2.2KW, Level 6 |
| Electric motor: hydraulic transmission | 0.75KW, Level 4 |
| Hydraulic oil tank capacity | 18 liters |
| Volume of cutting fluid tank | 40 liters |
| Variable vane pump | VP-15-FA |
| Cutting fluid pump | Pump DB-12A |
| Power | 40W 380V |
| Allowable load | 1700kg |
| Machine weight | 1500kg |
| Internet traffic | 12L/min Head-3M |
| Feed Speed | Hydraulic control (none) |
| Machine tool dimensions (length x width x thickness) mm | 2200×2300×1650 |
| Machine weight (kg) | 2800 |
Main uses
This machine tool is mainly used for sawing all kinds of steel, such as hard cutting materials, special alloy steel, high alloy steel, low alloy steel and mild steel. Replacement bands can also be used for sawing non-ferrous and non-metallic metals.
Performance characteristics:
1. CPU microcomputer automatic control system is used to set the automatic program of the whole sawing process. Manual operation is also optional.
2. Man-machine interface displays equipment operation status, parameter Settings, operation instructions, the operation is simple and efficient.
3. Built-in operation instructions, sawing data background statistics, simple, clear, convenient.
4. Sawing length, group number, quantity can be set, real-time display, feed length is controlled by grating ruler, length error is less than 0.2mm.

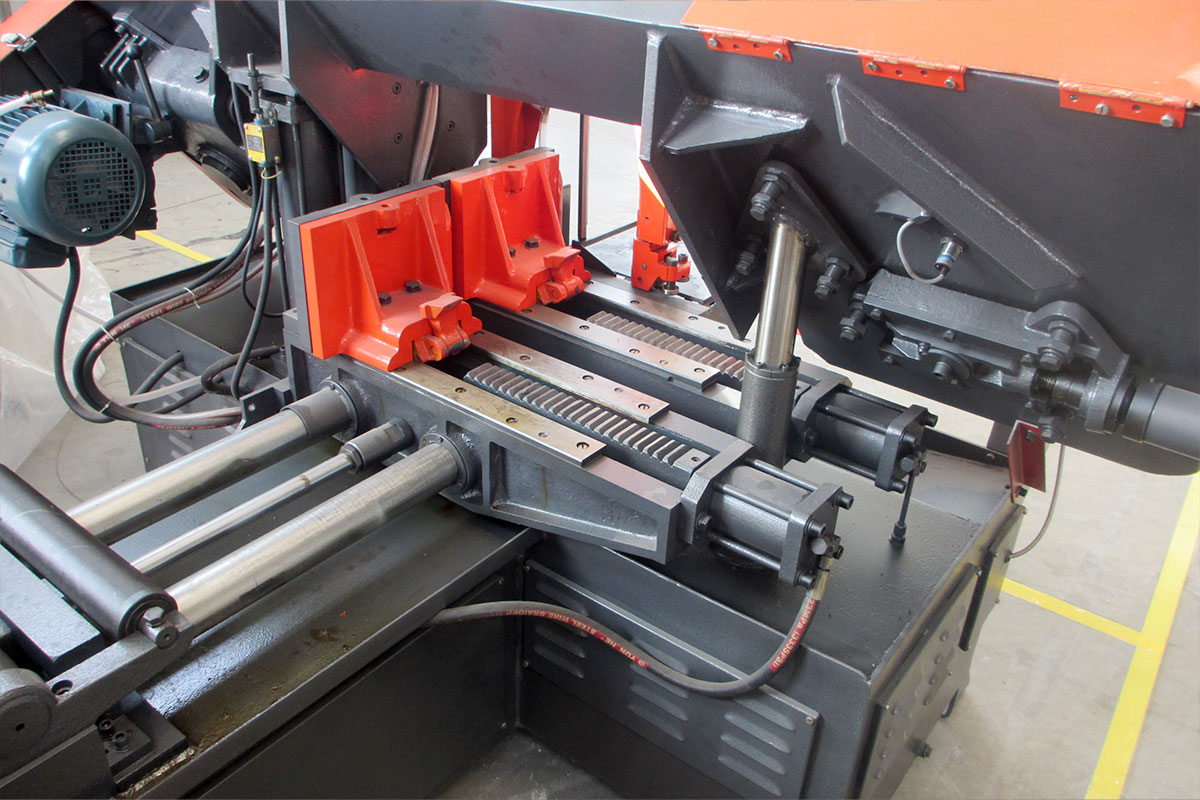

5. Workpiece hydraulic clamping, hydraulic feed mode is optional, sawing speed hydraulic stepless speed regulation.
6. Saw band flexible tension, prolong the service life of the saw band. The structure is reasonable, the bed is heavy, the saw frame is stable, the performance is stable and reliable, and the precision is high.
7. Steel brush active mechanism is used to clean the saw belt with water flushing to clean the chips and extend the service life of the saw belt.

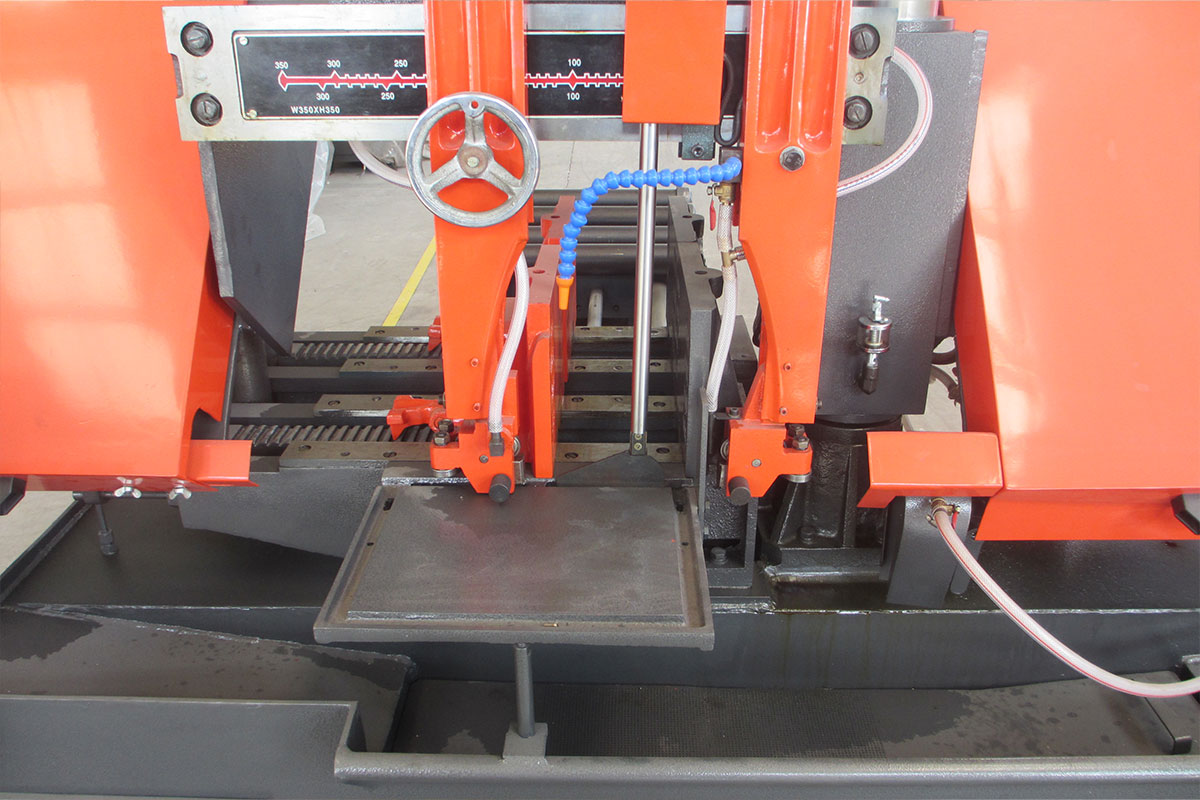

8. Saw belt guide structure is scientific and reasonable, using rolling bearing and hard alloy block guide, saving saw belt and high sawing precision.
9. Bundle sawing device - top pressing (optional).
Service Commitment:
a) Understand the production and processing needs of users before sales, provide users with band sawing machine products with reasonable performance and price, provide timely and accurate technical help to users when necessary, and make necessary explanations on technical documents, drawings, instructions for use, equipment performance, analysis methods, etc.;
b) Train operators and maintenance personnel on equipment operation, maintenance, analysis and inspection after product delivery;
c) If the product fails during use, reply in time after receiving the user's maintenance notice or send service personnel within 24 hours;
d) To ensure long-term provision of maintenance spare parts for outgoing products.
Ordering Instructions:
a) By default, the sawing machine does not include the upper clamping set (clamping device for bundle cutting), which can be purchased separately on request.
b) If the actual cutting range will be smaller after ordering the upper pressing device, please communicate with the sales staff in advance according to the actual use.
c) The installation and commissioning of free equipment is only limited to the surrounding areas of Hebei, and some fees will be charged for commissioning in other areas. The specific fees will be negotiated depending on the distance.
