Main technical parameters
▶ Large diameter of saw material ————————Φ80~Φ400mm □400mm(height)×500mm(width)
▶ Feeding length ————————0-9999.9mm
▶ Feed number ————————0-999
▶ Number of groups ————————1-8 groups
▶ Saw belt length ————————5100mm
▶ Width ————————41mm
▶ Thickness ————————1.25mm
▶ Saw belt wheel diameter ————————Φ550mm
▶ Workbench height ————————500mm
▶ Belt cutting speed (m/min)———————24, 46, 69 (belt speed control)
▶ Feed speed ———————— hydraulic control (stepless)
▶ Motor:
Saw belt main drive —————5.5KW, level 4
Hydraulic drive ——————1.5KW, level 4
Hydraulic tank capacity ————————32 l
Cutting fluid tank volume ————————40 l
▶ Variable vane pump: VP-15-FA
▶ Cutting fluid pump:
Water pump DB-12A
Power ————————40W 380V
Flow ————————12L/min head -- 3M
▶ Machine outline size:
2600mm(L) x 2400mm(W) x 1900mm(H)
Allowable load ————————3500kg
The machine weight is ————————3100kg
Main uses
This machine tool is mainly used for sawing all kinds of steel, such as hard cutting materials, special alloy steel, high alloy steel, low alloy steel and mild steel. Replacement bands can also be used for sawing non-ferrous and non-metallic metals.
Performance characteristics:
1. CPU microcomputer automatic control system is used to set the automatic program of the whole sawing process. Manual operation is also optional.
2. Man-machine interface display equipment operation status, parameter setting, operation instructions, simple operation and high efficiency.
3. Built-in operation instructions, sawing data background statistics, simple, clear, convenient.
4. Sawing length, group number, quantity can be set, real-time display, feed length is controlled by grating ruler, length error is less than 0.2mm.

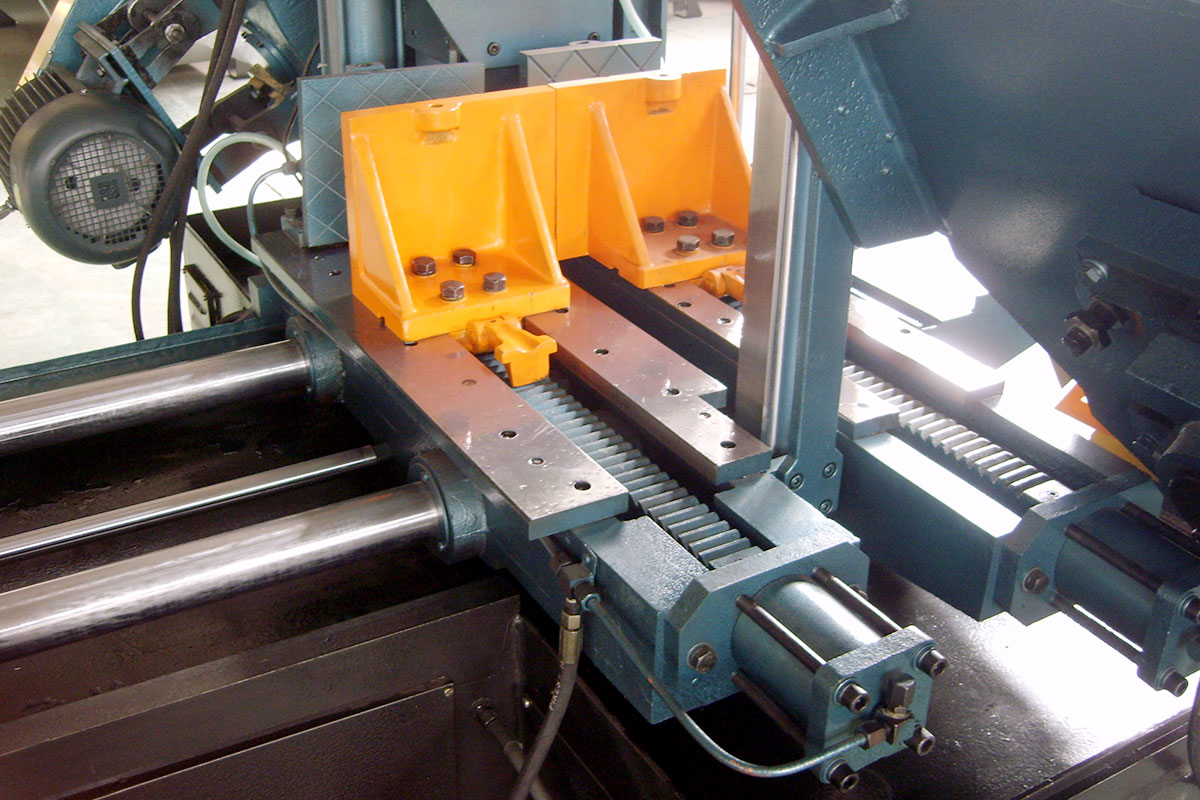

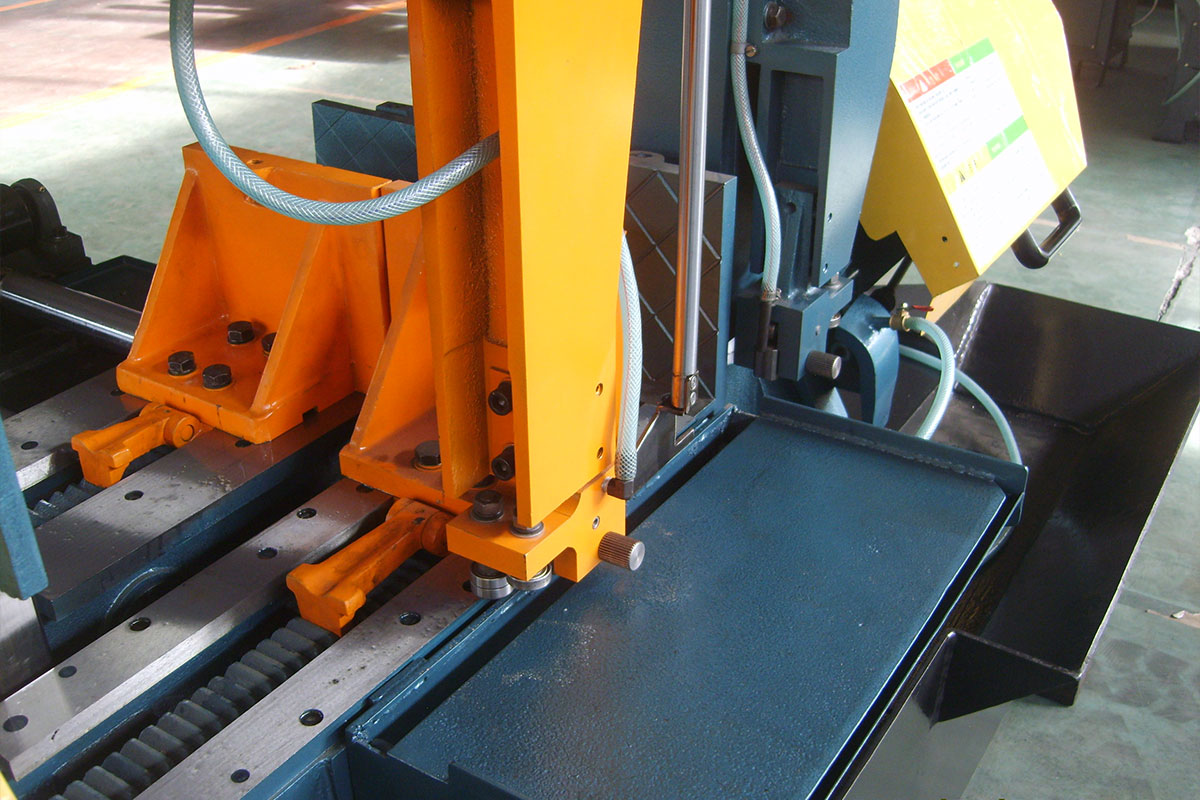

5. Workpiece hydraulic clamping, hydraulic feed mode is optional, sawing speed hydraulic stepless speed regulation.
6. Saw band flexible tension, prolong the service life of the saw band. The structure is reasonable, the bed is heavy, the saw frame is stable, the performance is stable and reliable, and the precision is high.
7. Steel brush active mechanism is used to clean the saw belt with water flushing to clean the chips and extend the service life of the saw belt.

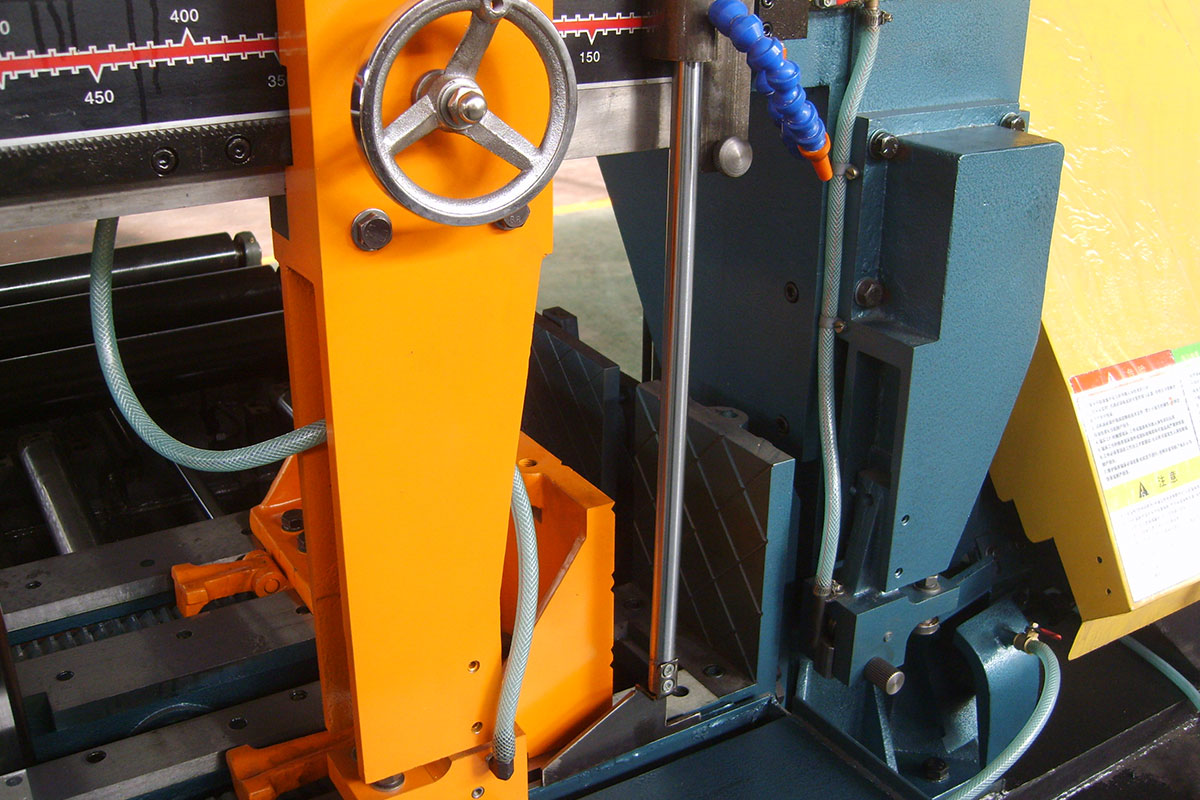

8. Saw belt guide structure is scientific and reasonable, using rolling bearing and hard alloy block guide, saving saw belt and high sawing precision.
9. Bundle sawing device - top pressing (optional).
Service Commitment:
a) Understand the production and processing needs of users before sales, provide users with band sawing machine products with reasonable performance and price, provide timely and accurate technical help to users when necessary, and make necessary explanations on technical documents, drawings, instructions for use, equipment performance, analysis methods, etc.;
b) Train operators and maintenance personnel on equipment operation, maintenance, analysis and inspection after product delivery;
c) If the product fails during use, reply in time after receiving the user's maintenance notice or send service personnel within 24 hours;
d) To ensure long-term provision of maintenance spare parts for outgoing products.
Ordering Instructions:
a) By default, the sawing machine does not include the upper clamping set (clamping device for bundle cutting), which can be purchased separately on request.
b) If the actual cutting range will be smaller after ordering the upper pressing device, please communicate with the sales staff in advance according to the actual use.
