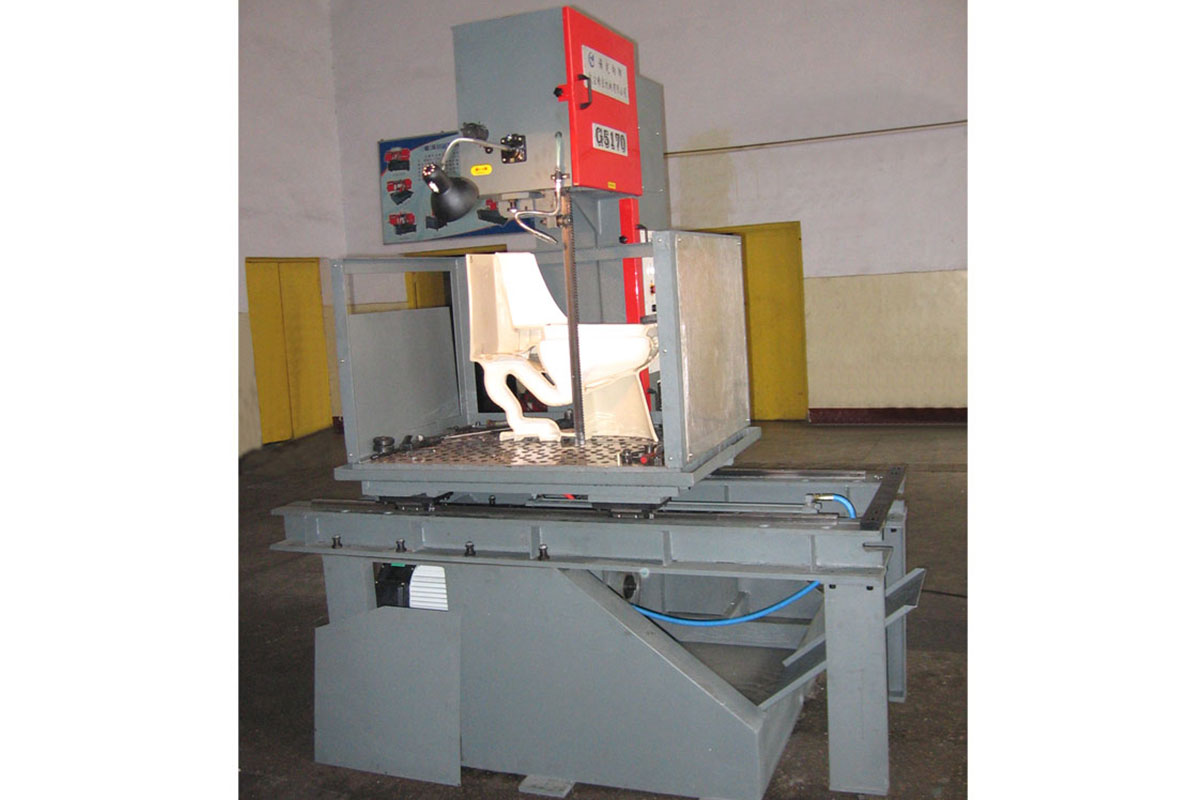

Vertical band sawing machine V6-5185

Add time:2024-09-26   Number of views:40


1. Overview

G5185 vertical band sawing machine is one of our vertical sawing machine series products, which can be used as special equipment after improvement. Suitable for cutting such as block class, plate class, mold type workpiece, etc., customers are generally used to cut, cut, cut head, slice, cutting Angle, cutting gap, etc., is an ideal tool to replace gas cutting and wire cutting, not only greatly improve the cutting efficiency of the workpiece, but also save the loss of raw materials.

2. the main technical parameters:

Sawing machine typeV6-G5185 vertical saw machine
Sawing speed160m/min
Throat height850mm
Throat width400mm
Band saw blade specifications4870 x 34 x 1.1
Band saw motor power5.5KW
Cooling pump40W
Table size790x700
Workpiece feed speedManual feed
Band saw tensionManual tensioning
Overall dimensions (L x W x H)2140×1400×2320 mm
Sawing weight2500KG
