1. Overview
G520A vertical band sawing machine is one of our vertical sawing machine series products, which can be used as special equipment after improvement. Suitable for cutting such as block class, plate class, mold type workpiece, etc., customers are generally used to cut, cut, cut head, slice, cutting Angle, cutting gap, etc., is an ideal tool to replace gas cutting and wire cutting, not only greatly improve the cutting efficiency of the workpiece, but also save the loss of raw materials.
2. the main technical parameters:
Sawing machine type | V6-G520A vertical saw machine |
Sawing speed | 24、52、74 (m/min) |
Throat height | 500mm |
Throat width | 500mm |
Band saw blade specifications | 4450 x 34 x 1.1 |

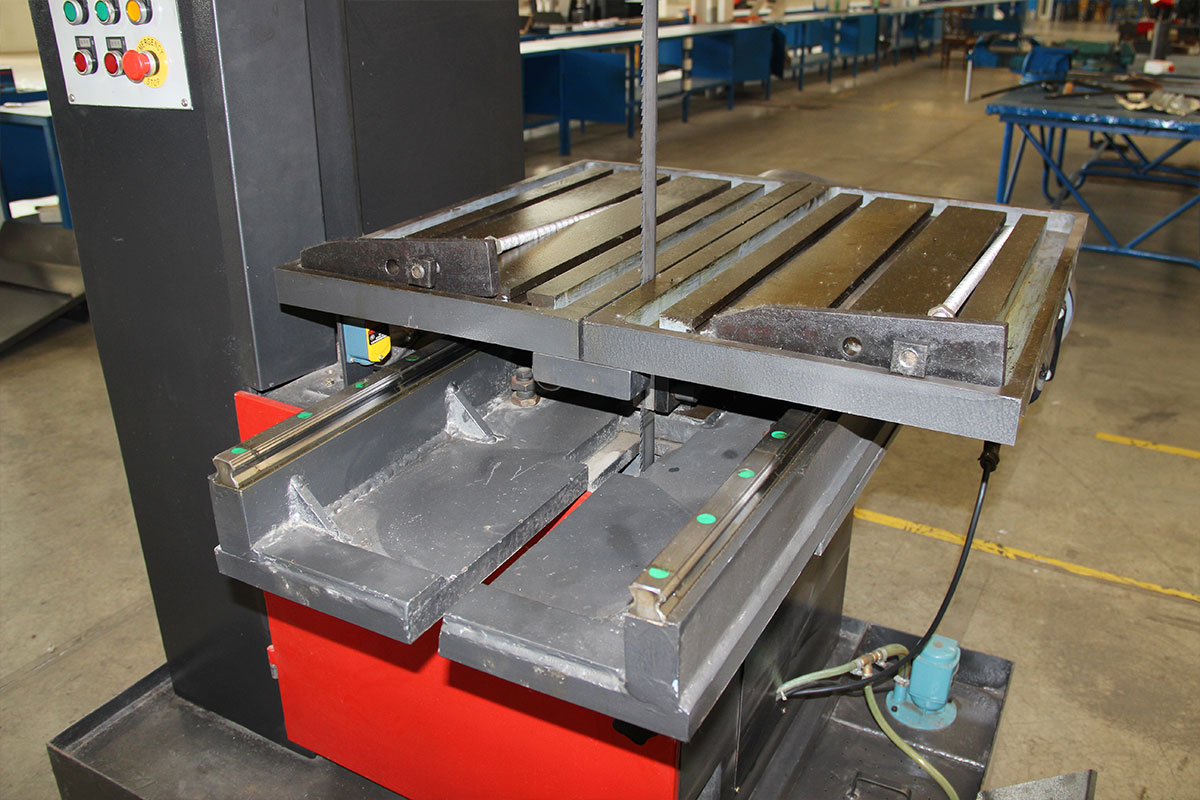

Table size | 790x700 |
Table feed stroke | 500mm |
Table feed speed | Electric speed regulation |
Band saw tension | Manual tensioning |
Band saw motor | 4KW |
