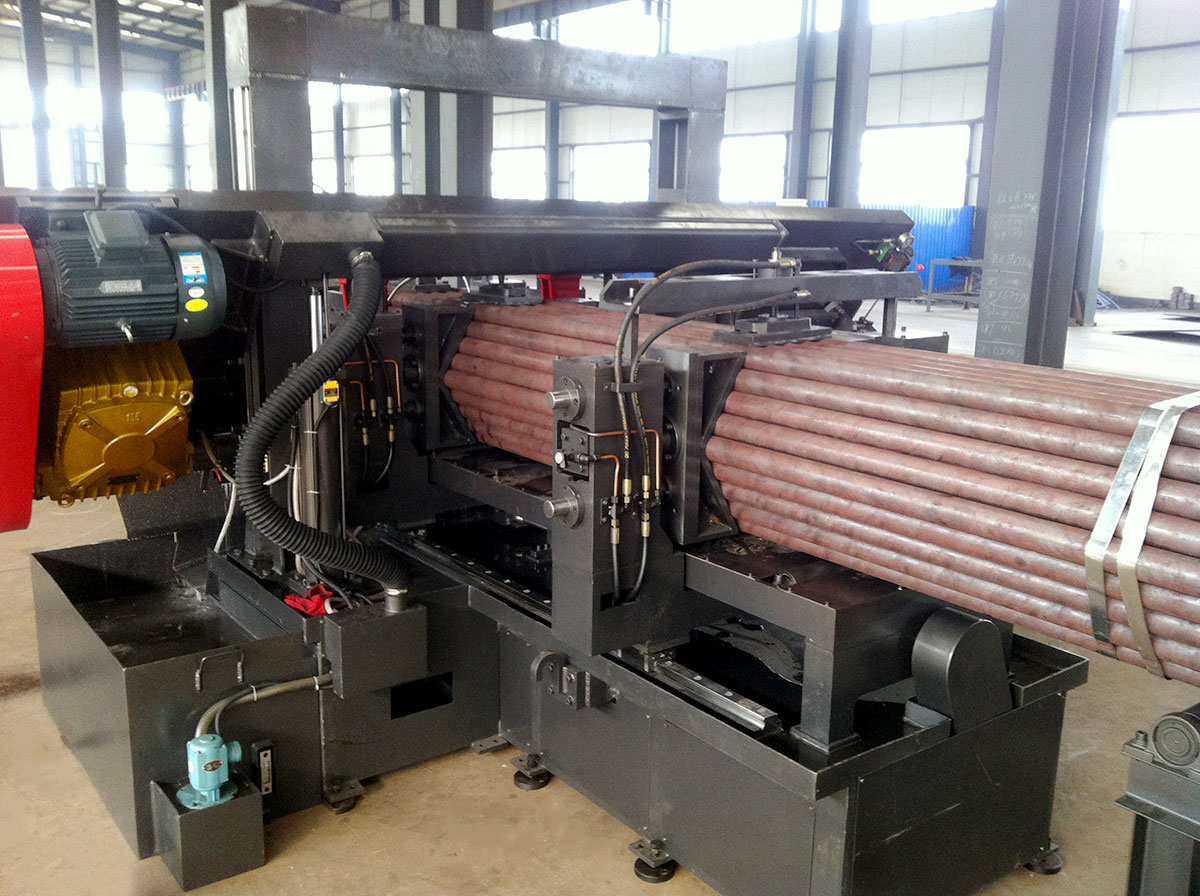

Cut the pipe in bundles

Maximum cutting height: 500mm

Large sawing width: 600mm (width size refers to the opening size of the smaller position of V-type tooling when sawing bundles)

Actual size:

∮60 steel pipes - 61

∮48 steel pipes - 91

Single feeding stroke: 1100mm

Single pulling stroke: 1600mm

Saw belt running speed (m/min) : (28, 48, 68) three speed regulation

Saw bow feed speed (mm/min) : (0 ~ 230) stepless adjustment

Saw band size (mm) : 7460*41*1.3

Main motor (KW) : 4-------6 level

Feeding motor (KW) : 1.5 (two sets)

Hydraulic motor (KW) : 1.5

Cooling pump (KW) : 0.09

Overall dimensions (length * width * height) (mm) : 3865*3579*2130

Machine weight (kg) : ~ 6000

Actual cutting test data of sawing machine:

Cut off time: faster 12 minutes, slower 15 minutes, customer requirements design 20 minutes.
