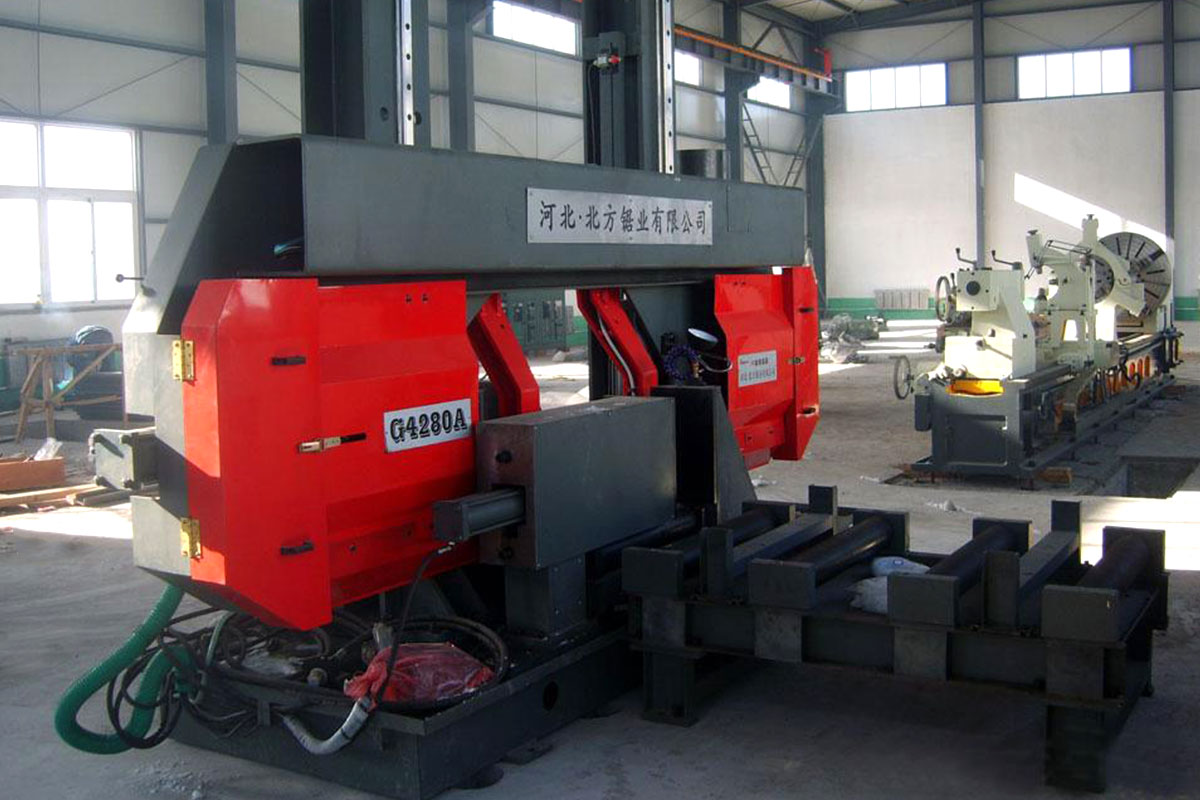

Gantry band sawing machine V6-GB4280

Main technical parameters:

The main technical description:

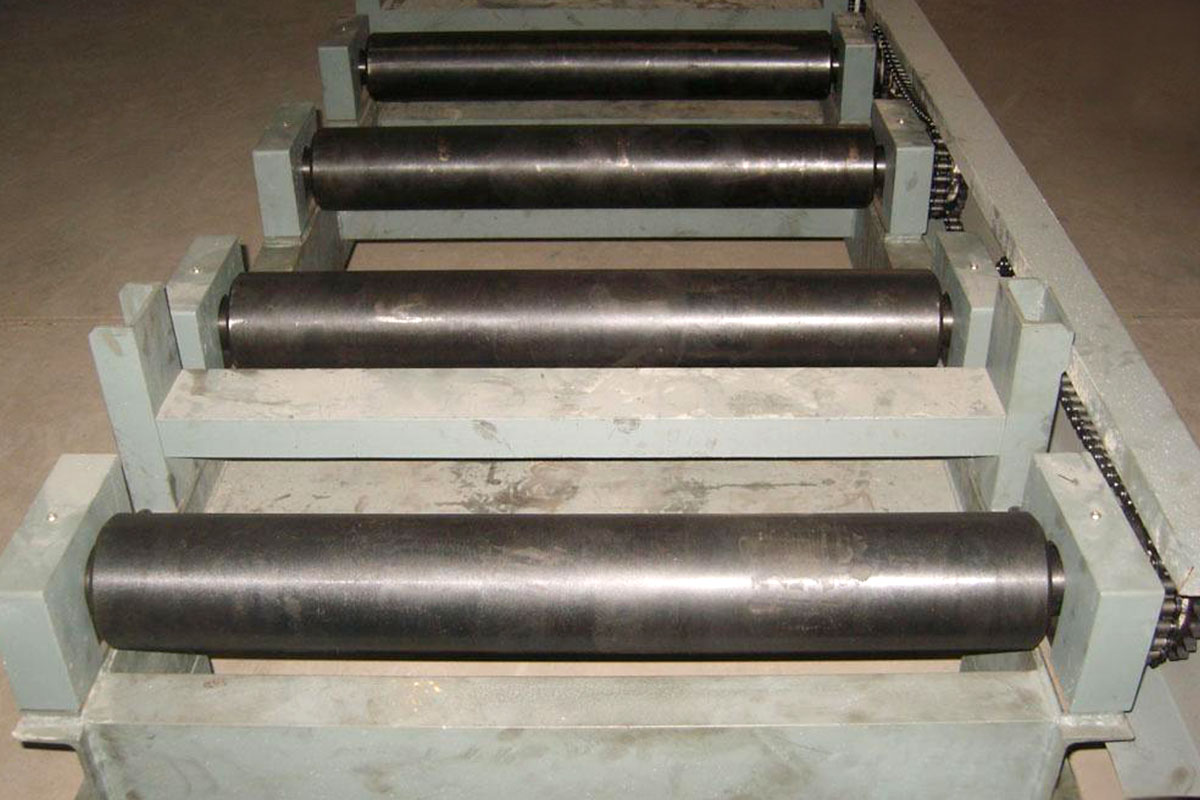

A feeding mechanism for forward and backward two-way feeding.

B The working feed speed is hydraulically stepless.

C hydraulic automatic tension band saw blade, broken belt automatic stop; After shutdown, the saw blade automatically relaxes to avoid fatigue and prolong the life of the saw blade.

D Special accessory projection light, can easily and accurately align the saw edge.

The basic characteristics of sawing machine:

1. Machine structure: semi-automatic horizontal metal band sawing machine

2. Operation mode: manual/automatic button operation, convenient and simple.

3. It can realize the hydraulic tightening up and down at the same time, and can be sawed into bundles. (The upper pressing device is not included in the standard configuration, and customers can purchase it separately according to their needs)

4. Ultra-long saw belt service life:

① The saw blade guide device of the combination of rolling bearing and cemented carbide and spring positioning can greatly reduce the unstable factors such as tooth breaking and belt breaking.

② Pressure bearing, spring positioning flexible saw belt tensioning device

③ The Angle of saw wheel tilt is small, and the Angle of saw blade vertically downward oriented twisting is small.

④ The steel brush transmission device adopts the active transmission that is connected with the main transmission to effectively brush the sawdust on the sawtooth and avoid the tooth beating phenomenon caused by the sticky dust; The position of the steel brush and saw blade can be adjusted at any time with the wear of the steel brush, extending the life of the saw blade.

5. Turboworm transmission performance is stable and reliable.

6. The overall bed and replaceable wear-resistant guide slide have stable accuracy and long life.

7. Closed large fuel tank, suitable for 24 hours of continuous work system without heating.

8. It can still be adjusted to high precision after a long time of use.

9. All the structural parts are vibrating and aging, and the residual stress is eliminated to a greater extent to prevent the deformation of the machine tool.

10. Parts shot blasting, enhance the adhesion of the paint film, enhance the overall strength and rigidity of the machine;

11. Increase power design, fully adapt to strong cutting

12. The parts are of good material, and the hydraulic parts and electrical parts are purchased with famous brands at home and abroad, thus ensuring the high quality of products and being identified as national high-tech products.

Service Commitment:

a) Understand the production and processing needs of users before sales, provide users with band sawing machine products with reasonable performance and price, provide timely and accurate technical help to users when necessary, and make necessary explanations on technical documents, drawings, instructions for use, equipment performance, analysis methods, etc.;

b) Train operators and maintenance personnel on equipment operation, maintenance, analysis and inspection after product delivery;

c) If the product fails during use, reply in time after receiving the user's maintenance notice or send service personnel within 24 hours;

d) To ensure long-term provision of maintenance spare parts for outgoing products.

Ordering Instructions:

a) By default, the sawing machine does not include the upper clamping set (clamping device for bundle cutting), which can be purchased separately on request.

b) If the actual cutting range will be smaller after ordering the upper pressing device, please communicate with the sales staff in advance according to the actual use.

c) The installation and commissioning of free equipment is only limited to the surrounding areas of Hebei, and some fees will be charged for commissioning in other areas. The specific fees will be negotiated depending on the distance.
